Top End Rebuild Gasket Kit

for Shovelhead

Pkg: 1 kit  – Part# 38438a (Replaces OEM 17034-80)

This is a complete Top End Gasket Kit for the Shovelhead Big Twin. It should contain all the gaskets, seals and O-rings you need to put your Shovelhead top end back together securely.

The head gaskets are a flexible material similar to Teflon, reinforced with steel mesh core. The steel mesh is molded into the gasket material so that it would be very difficult for a head gasket to blow out. We measure the thickness at approximately 0.031″ (0.8mm). This type of gasket should allow you to pull the heads off again easily without them sticking.

This kit has 2 sets of valve stem seals!
The first set are 3/8″ x 0.625″ seals that fit newer Shovelhead engines from Late 1980 when Harley first starting installing them.

The Second Set of Valve Stem Seals is for the older engines that did not original have factory-installed seals. This set is made of High Temperature Viton (the blue ones) with a spring-loaded aperture, encased in a steel body. You should find these seals very easy to install. The seals for the older engines are 3/8″ x 0.562″ and normally fit Shovelhead engines from 1966 through Early 1980. However… if someone has machined the casting to install some other size aftermarket seals, these standard replacements (ref. 18001-48) may not fit your engine.

For a kit with only 1 set of seals please buy one of our other kits #38438 (L80-84 factory style seals only) or 38438b (1966-E80 aftermarket sty le seals only) – at a few dollars lower price.

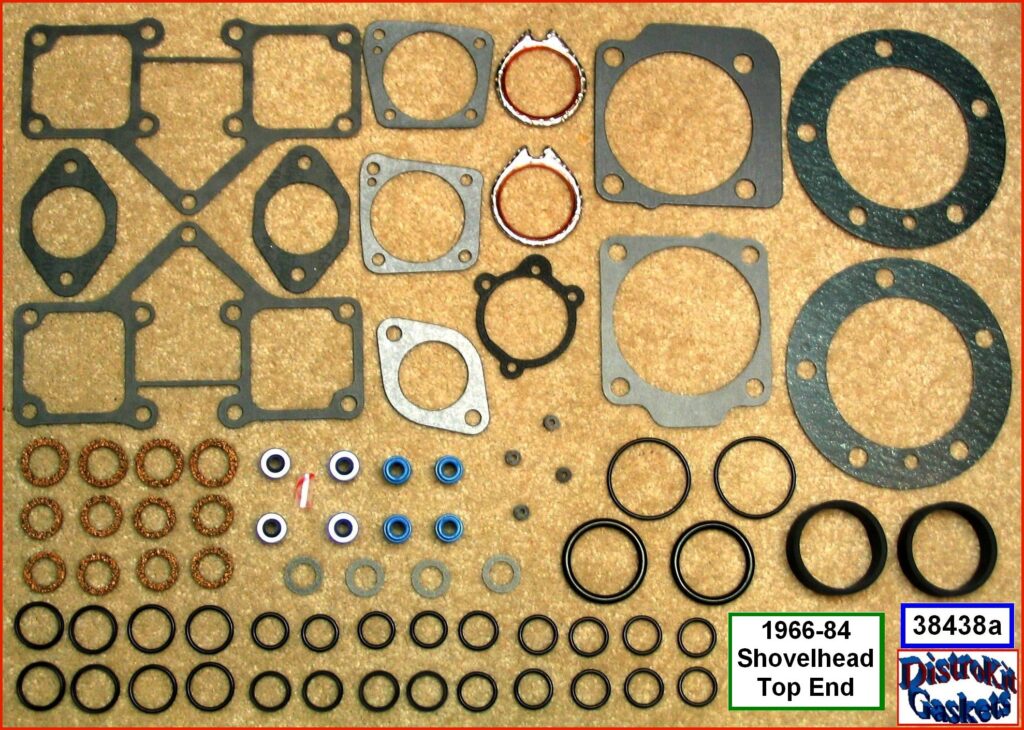

Actual Photo   The photo with this listing is an actual picture of the parts included in this kit. You will receive every part shown in the photograph. Although the color and exact shape of some gaskets or seals may vary slightly from time to time, they will all fit and all be the good quality you expect.

Before we ship this kit to you, we will pack it very carefully so that every single gasket and seal arrives at your door safely and in perfect condition.

Discounted Shipping for additional gaskets. We will combine the shipping charges for any other gaskets, seals or O-rings ordered and shipped together with this kit.

All our products are brand new and made to high standards to meet or exceed OEM specifications.

Kit Features:

• Flexible Head Gaskets reinforced with a steel mesh core.
• Steel/Viton 3/8″ x 0.625″ valve stem seals (set of 4) for Late 1980 to 1984.
• Steel/Viton 3/8″ x 0.562″ valve stem seals (set of 4) for unmodified 1966-Early 1980 engines.
• Kit Parts List included.

Applications:

1966-1984 Big Twin Shovelhead engines

Package Includes:

Complete Set of the gaskets, O-rings and seals shown in the photograph. (All the valve stem seals will be the newer steel/Viton rubber style, regardless of which is shown in the picture.)
Packaging Note: This kit comes in plain packaging, not retail store packaging.
For parts not yet listed . . . We have many gaskets and seals that are not yet listed. Please ask if you don’t see what you need.
