Primary Cover Gasket & Seal Kit

for 1989-1999 Harley Evo Softail & Dyna

Pkg of 1 kit  – Part# 38143K
(Ref. OEM 60539-89 and 60539-94)

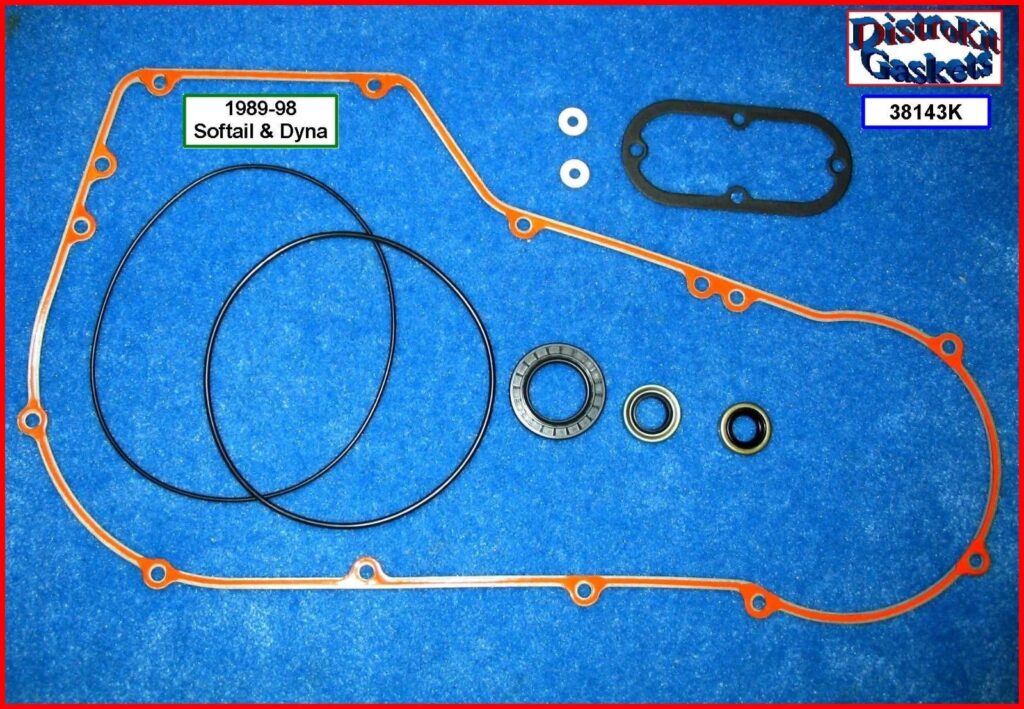

This gasket kit includes all the gaskets, seals and O-rings shown in the photo.

The primary cover gasket is 0.045″ (1.1mm) thickness fibre material that is fully silicone beaded on one side as shown in the photo. It will come to you perfectly flat. We never fold, roll or otherwise allow any gasket to get damaged in shipping.
If you prefer a foamet primary gasket – we also have kits with the foamet gasket at very good prices!
The big difference between the gaskets is that the foamet gasket (rubber on both sides of a steel core) is stiffer and re-usable, whereas the fibre gaskets usually don’t work very well if you try to re-use them. Please see another one of our listings or ask us about a kit with the foamet gasket.

The inspection cover gasket is foamet – rubber on both sides of a steel core. It will not leak and no sealant is necessary.

The oil seals included are just what you will need. Depending upon the model year of your engine, you will have one starter shaft seal left over – but you won’t be short!

The two spacer washers (“tower washers”) are also foamet with an adhesive back that will keep them in place as you install the cover. The washers is turned upside down in the photo showing the white peel-off covering the adhesive on the sticky side.

Our products are brand new and made to high standards to meet or exceed OEM specifications.

****Applicable models****

• 1989-1999 Evo Softail & Dyna
  *This kit may fit additional years or models. If you know of any, we would be glad to hear from you!

****Some kit specs****

• Primary cover gasket silicone beaded on one side.
• Inspection cover gasket is foamet – rubber on steel.
• Includes inner-primary-to-mainshaft oil seal.
• Includes 2 starter shaft oil seals – one for 1989-93, and one for 1994-up. (Some early 94 engines might use the older style seal.)
• The two spacers (“tower washers”) are foamet with adhesive backing on one side.

****Package contains****

• Every single part you see in the photograph
  Please Note:We securely re-pack every kit for safe shipping. This item comes in its own custom box that keeps the primary gasket absolutely flat during shipping.
