Kit, primary cover gasket, 1994-1998 Touring FLT, FXR, 34901-94, beaded primary w/derby, Ref. 34901-94

Primary Cover Gasket & Seal Kit

for 1994-1999 Harley Touring (“Bagger”)

Pkg of 1 kit  – Part# 38138K
(Ref. OEM 34901-94)

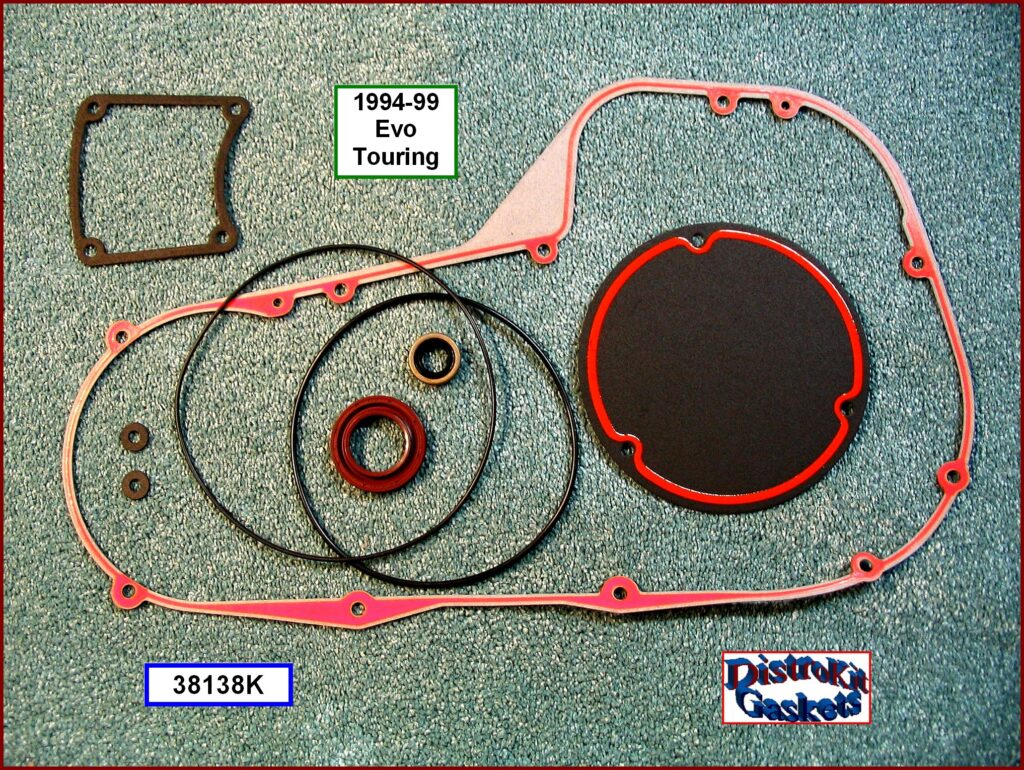

This gasket kit includes all the gaskets, seals and O-rings shown in the photo.

The primary (chain) cover gasket is a nominal 0.050″ (~1.25mm) thickness fibre material, silicone beaded on one side as shown in the photo. It will come to you perfectly flat. We never fold, roll or otherwise allow any gasket to get damaged in shipping.
If you prefer a foamet primary gasket – we also have kits with the foamet gasket at very good prices!
The big difference between the gaskets is that the foamet gasket (rubber on both sides of a steel core) is stiffer and re-usable, whereas the fibre gaskets usually don’t work very well if you try to re-use them. Please see another one of our listings or ask us about a kit with the foamet gasket.

The derby / clutch cover gasket is foamet – rubber on both sides of a steel core. It will not leak and no sealant is necessary. On top of the rubber, it has silicone beading on one side.

A derby cover O-ring seal is also included in this kit. (It’s the thicker one in the photo – the thinner one is for the inner primary.) You probably will want to use the derby cover gasket instead so will not need it – but always nice to have a backup!
Note that this kit has a 3-hole derby cover gasket. If your derby cover has 5 screw holes, we have another kit for you with a 5-hole derby gasket. The 5-hole kit with the same primary gasket, is about the same price as this one.

The inspection cover gasket has been upgraded to Foamet – rubber on both sides of a steel core.

The two oil seals included are exactly the ones you will need – one for the inner-primary-to-mainshaft, and the other for the starter shaft.

Our products are brand new and made to high standards to meet or exceed OEM specifications.

****Applicable models****

  1994-1999 Evo Touring – FLT and other touring models
*This kit may fit additional years or models. If you know of any, we would be glad to hear from you!

****Some kit specs****

  Primary cover gasket silicone beaded on one side.

  Clutch/Derby cover gasket is foamet – rubber on steel with beading on 1 side.

  Derby cover O-ring seal included.

  Inspection cover gasket is rubber-on-steel Foamet.

  Includes inner-primary-to-mainshaft oil seal.

  Includes starter shaft oil seal.

****Package contains****

Every single part you see in the photograph. (On occasion, the color of some gasket or seal may vary. But only the color – the shape, function and high quality will all stay the same.)
Please Note: We securely re-pack every kit for safe shipping. This item comes in its own custom box that keeps the primary gasket absolutely flat during shipping.
