Primary Cover Gasket & Seal Kit

for 1984-1988 Harley Evo Softail & Dyna

Pkg of 1 kit  – Part# 38141fm-LK
(Ref. OEM 60538-81)

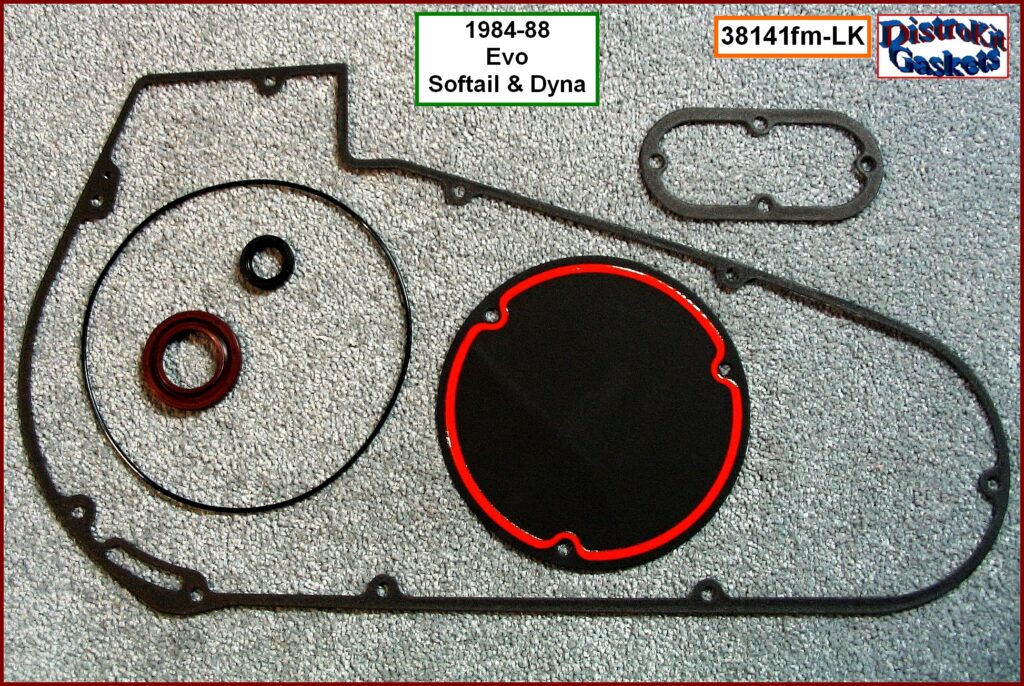

This gasket kit includes all the gaskets, seals and O-rings shown in the photo – plus another O-ring and a couple of seals that didn’t make it into the picture.  The extra parts are to ensure this kit will work for all the engines that were produced during the early model change years.

The primary cover gasket is Foamet – rubber on both sides of a steel core – as shown in the photo. It will come to you perfectly flat. We never fold, roll or otherwise allow any gasket to get damaged in shipping.

The derby / clutch cover gasket is foamet – rubber on both sides of  steel. It will not leak and no sealant is necessary. On top of the rubber, it has silicone beading on one side.

The inspection cover gasket is also foamet, rubber on steel core. This kind of gasket is always easy to install – just put it in place, screw on the cover and it works!

The oil seals included are the ones you will need for the inner primary cover and the starter shaft.

Two large O-rings are in this kit (one not shown in photo). One is for the derby cover, and the other is for the inner primary housing (inner primary to case).

If you prefer a Silicone Beaded primary gasket – we also have this same kit with the primary cover gasket fully beaded on one side – and at a very low price! Please see another one of our listings or ask us.

Our products are brand new and made to high standards to meet or exceed OEM specifications.

****Applicable models****

  1984-1988 Evo Softail & Dyna

  May also fit some early 1989 Evo Softail / Dyna as they did jot change the model exactly at the end of 1988. Note that the primary, inspection and derby gaskets will also fit the Shovelhead, but the seals will fit only the Evo!

  For a 1989 Evo, check the shape of the primary cover. If it does not match the gasket in the photo, you will need the 1989-up kit.
*This kit may fit additional years or models. If you know of any, we would be glad to hear from you!

****Some kit specs****

  Primary cover gasket is foamet.

  Clutch/Derby cover gasket is foamet – rubber on steel with beading on 1 side.

  Inspection cover gasket is foamet – rubber on steel.

  Has derby and inner primary O-rings to cover all the model years.

****Package contains****

  Every single part you see in the photograph
Please Note: We securely re-pack every kit for safe shipping. This item comes in its own custom box that keeps the primary gasket absolutely flat during shipping.
