Primary Cover Gasket & Seal Kit

for Harley Twin Cam 1999-2005 Dyna & 1999-2006 Softail with AIM Clutch

Pkg of 1 kit  – Part# 38143fm-5hK
(Ref. OEM 60539-89 and 60539-94)

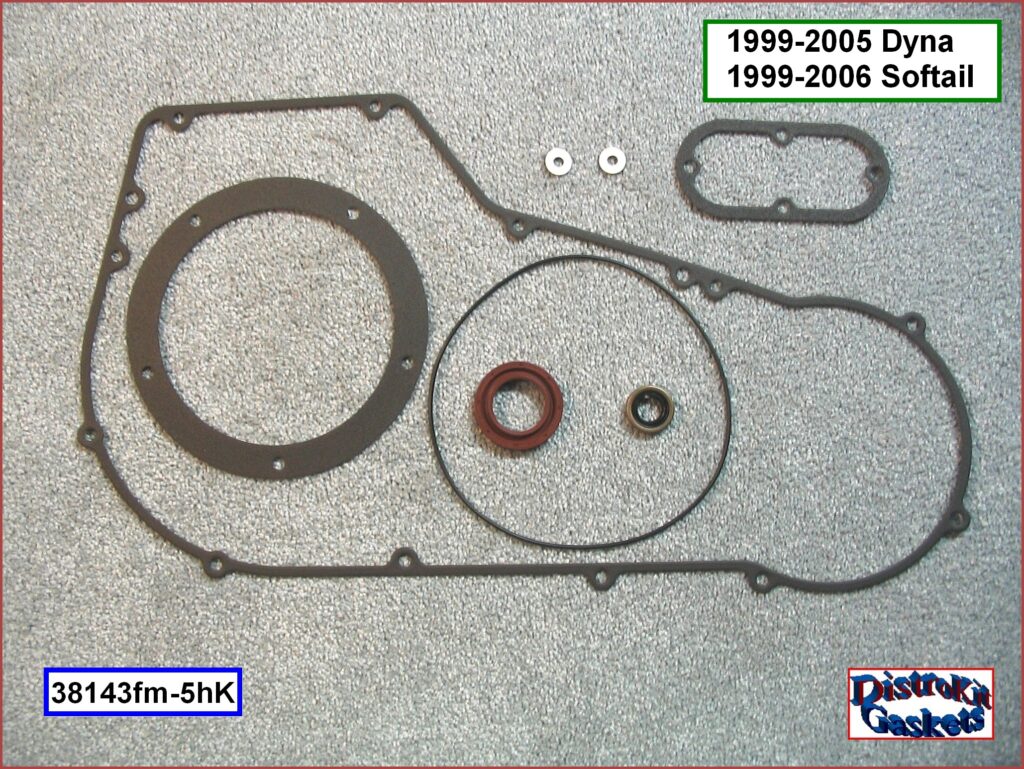

This gasket kit includes all the gaskets, seals and O-rings shown in the photo.

The primary cover gasket is Foamet – rubber on both sides of a steel core – as shown in the photo. This foamet gasket provides a superior seal and needs no sealant. It will come to you perfectly flat. We never fold, roll or otherwise allow any gasket to get damaged in shipping.

The 5-hole derby / clutch cover gasket is foamet – rubber on both sides of a steel core. It will not leak and no sealant is necessary.

**AIM Clutch**  If you have an AIM clutch… you are going to need a little more room for the clutch under the clutch/derby cover, so you will want this derby cover gasket with the center cut out as shown in the photo, instead of a solid cover gasket. If you do not have an AIM clutch, this gasket will still work just fine.

Note that this kit has a 5-hole derby cover. If your derby cover has only 3 screw holes, we have other kits for you with a 3-hole derby gasket. Same primary gasket, and about the same price for the corresponding kit.

The inspection cover gasket is foamet – rubber on both sides of a steel core. It will not leak and no sealant is necessary.

The oil seals included are exactly the two you will need – you won’t be short!

The two spacer washers (“tower washers”) are also foamet with an adhesive back that will keep them in place as you install the cover. The washers are turned upside down in the photo, showing the white peel-off strip covering the adhesive on the back.

If you prefer a beaded primary gasket – we also have kits with a silicone beaded primary cover gasket at a very good prices! Please see some of our other listings or ask us.

Our products are brand new and made to high standards to meet or exceed OEM specifications.

****Applicable models****

  1999-2005 Dyna with AIM clutch (will also work fine with standard clutch)

  1999-2006 Softail with AIM clutch (will also work fine with standard clutch)
*This kit may fit additional years or models. If you know of any, we would be glad to hear from you!

****Some kit specs****

  Primary cover gasket is foamet.

  5-Hole Clutch/Derby cover gasket is foamet – rubber on steel – with the center open to allow for AIM clutch installation.

  Inspection cover gasket is foamet – rubber on steel.

  Includes inner-primary-to-mainshaft oil seal.

  Includes starter shaft oil seal.

  The two spacers (“tower washers”) are foamet with adhesive backing on one side.

****Package contains****

  Every single part you see in the photograph, exactly as described
Please Note: We securely re-pack every kit for safe shipping. This item comes in its own custom box that keeps the primary gasket absolutely flat during shipping.
